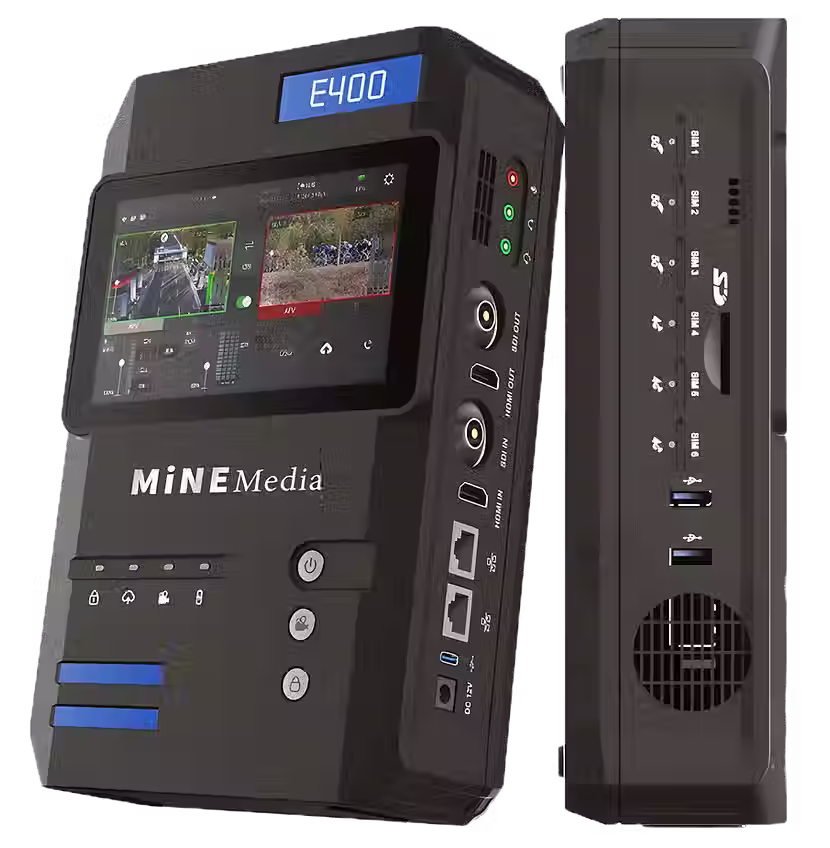

Mine E400 5G Encoder for Outdoor Streaming and Live Streaming
Key Features:
✅
Multi-Network Bonding (5G & IP)
5G & 4G Cellular Bonding:
-
Supports bonding up to 11 network links (multiple 5G and IP connections).
✅
Broadcast-Grade 4K Video Encoding
-
Supports 4K video encoding up to 3840×2160 @ 60 fps.
-
supports lower resolutions (1080p, 720p) and multiple codecs (H.265/HEVC & H.264).
-
Adjustable bitrates with VBR / CBR control.
✅
Professional Inputs & Outputs
-
Video Inputs: 1× 4K HDMI, 1× 3G-SDI, 1× 4K UVC camera input, plus pull-stream input.
-
Video Outputs: 4K HDMI, 3G-SDI, UVC — for monitoring or looping signals.
-
Supports common streaming protocols such as RTMP(S), SRT, RTSP.
✅
Audio Support
-
HDMI/SDI embedded audio + external 3.5 mm dual-channel input.
-
Built-in support for audio intercom and monitoring.
-
Standard AAC audio encoding.
✅
Network and Connectivity
-
6 SIM card slots (3× 5G modules + 3× 4G modules) for extensive cellular bonding.
-
Wi-Fi 6 (dual-band 2.4 GHz/5.8 GHz).
-
Gigabit Ethernet and USB network support (via external dongles/cards).
-
SD card storage support (up to ~521 GB) for local recording.
✅
Control, Monitoring & Management
-
Built-in 5.5″ HD touchscreen for on-device control and status view.
-
Support for remote management and configuration via iOS/Android app.
-
Firmware update support and remote diagnostics.
✅
Technical Highlights
Video
-
4K @ 25/30/60 fps; 1080p up to 60 fps; 720p up to 120 fps.
-
Supports resolutions down to 480×270 for low-bandwidth streaming.
Encoding
-
H.265/HEVC & H.264/AVC profiles.
-
Bitrate adjustable with VBR/CBR.
Power
-
DC12 V input, 8.4 V / ~12000 mAh battery.
-
~30 W max consumption.
Environment
-
Operating temperature from roughly −20 °C to 80 °C.
-
High humidity tolerance.
%20(1).webp)
.jpeg)
MiNE Media Video Encoder Solutions
✅
Live news broadcasting
Reliable real-time transmission from field locations using bonded networks.
✅
Outdoor & mobile live streaming
Stable streaming for on-the-move productions without fixed internet.
✅
Sports & event coverage
High-quality live streaming for sports, concerts, and public events.
✅
Corporate & conference streaming
Professional broadcast of meetings, product launches, and seminars.
✅
Remote production contribution
Send live video feeds from remote sites to central studios.
✅
Social media live streaming
Stream directly to YouTube, Facebook, and other platforms simultaneously.
✅
Government & political broadcasts
Secure and uninterrupted live coverage of rallies and official events.
✅
Education & training streams
Deliver live online classes, workshops, and virtual training sessions.
✅
Live field interviews
Enable real-time interviews from remote locations with low latency.
✅
Backup & redundancy streaming
Acts as a fail-safe encoder to ensure uninterrupted live broadcasts.
Key Applications
_edited_edited.jpg)
Live news broadcasting
Corporate Live Eevent
Social Media Live
Worship Live Streaming
Live Education
Sport Streaming
