Videocast H.265/ H.264 1U 1 channel SDI Encoder

Updated: Dec 6, 2023

channel sdi encoder
Videocast H.265/ H.264 1U 1 channel SDI Encoder

Product Description:

  • 1- channel HD/3G SDI input, 1-channel audio input.

  • 1- Channle SDI output,1-channel IP output

  • Dual streams output H.265/H.264 format, Audio: MP3, AAC, G.711 format.

  • H.264 1U 1 channel SDI Encoder

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV/ UDP / ONVIF / HLS / SRT protocols.

Red indicator: power. Yellow: Network Green: Streaming status.

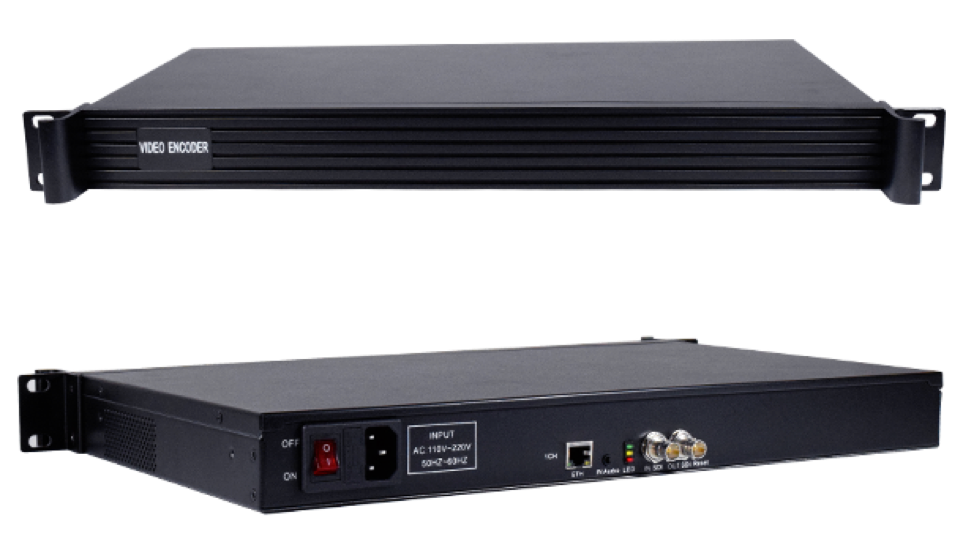

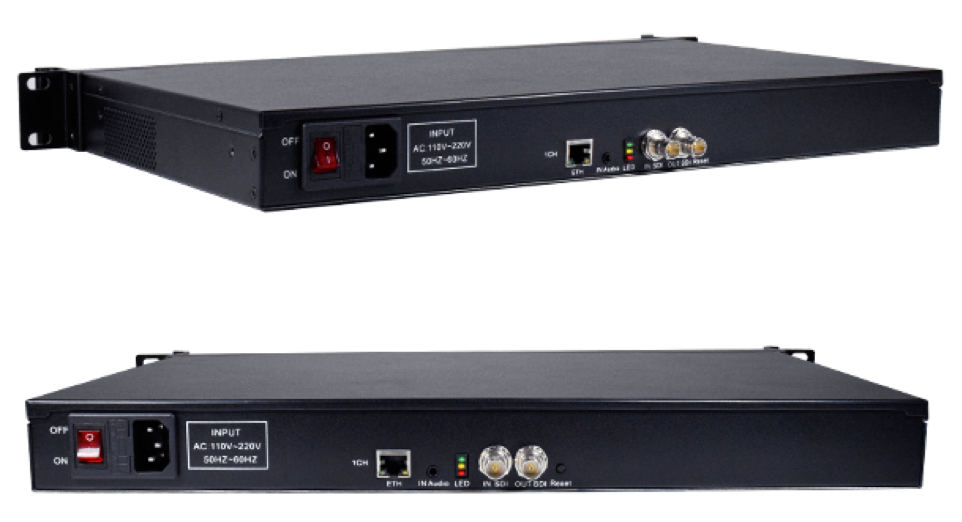

channel sdi encoder back side
dVideocast H.265/ H.264 1U 1 channel SDI Encoder decoder

1. Resolution: up to 1920x1080p 60 FPS


3. Video bitrate Control: CBR / VBR 16KB-12MB/ S

4. Video packaging: A mode: FFMPEG, B mode: VLC

5. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)

6. Support WEB access in English, passwords change, WAN remote management (WEB)

7. Support Text/ image OSD, images superimposing.

8. Low power consumption design.

To Buy Click Below:

To Know more, Please find below data sheet:

VIDEOCAST 1U SDI Video Encoder
Download PDF • 499KB

video encoder side view
side view
