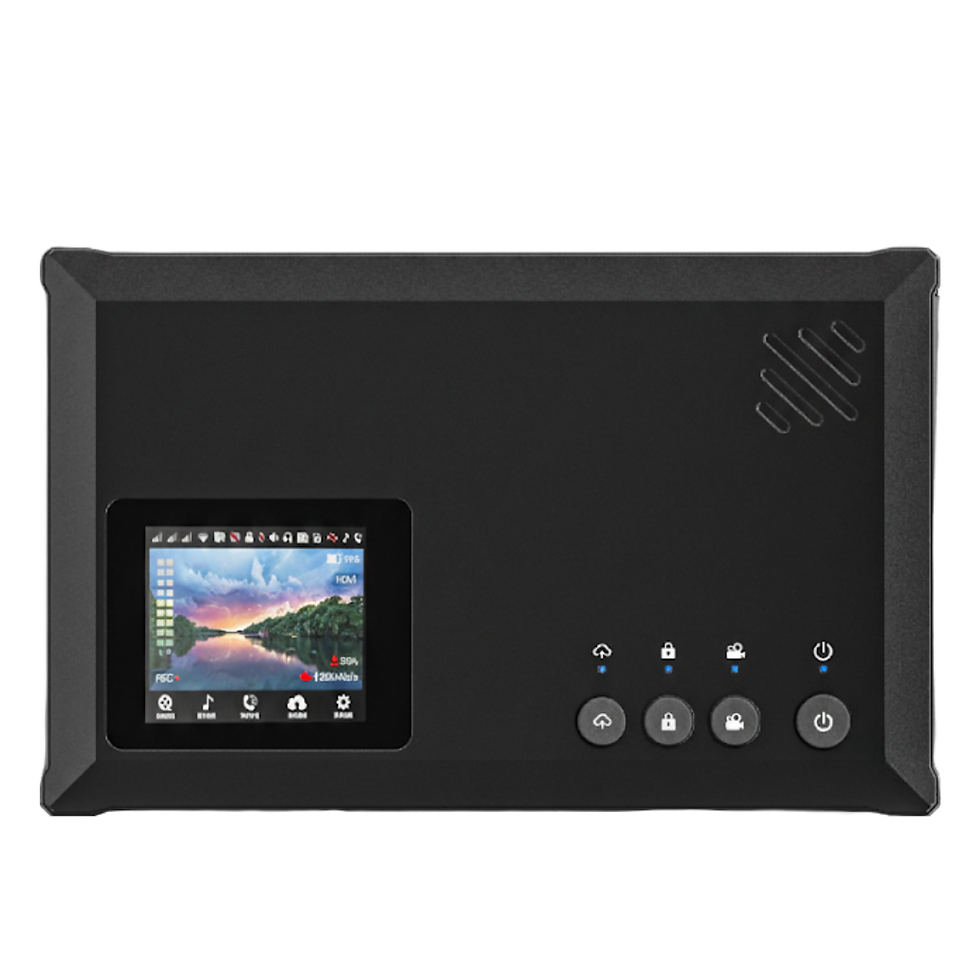

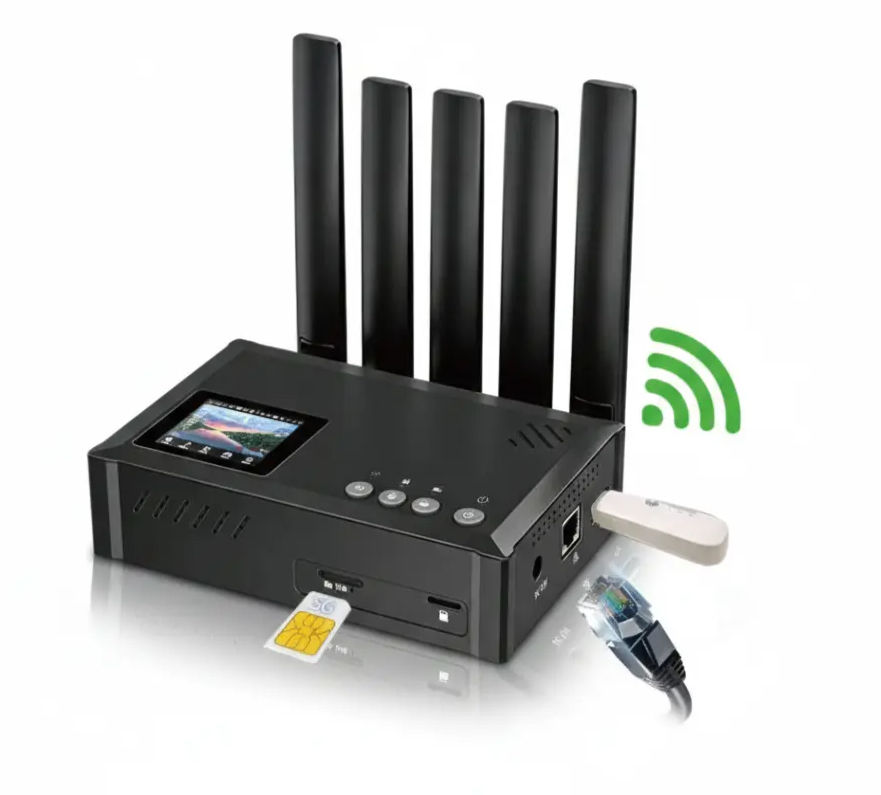

Mine-Q8 SE 5G HDMI Bonding Video Encoder is a compact, professional live streaming and recording device designed for mobile broadcasting, worship services, and live events. It supports HDMI/UVC input, H.264/H.265 encoding, and delivers smooth Full HD 1080p60 streaming with low latency. With built-in 5G, dual-band Wi-Fi, Gigabit Ethernet, and multi-network bonding, it ensures stable transmission anywhere. Supporting RTMP(s), SRT, and RTSP, local TF card recording up to 256GB, and a 2-inch touch screen, itโs a reliable all-in-one solution for high-quality live production.
Key Features
๐ฅ Professional Video Encoding
Supports H.264 & H.265 compression for high-quality, low-bitrate streaming
Encoding profiles: H.265 Main / H.264 High, Main & Baseline
Maximum 1080p60 live streaming & recording
๐ Flexible Video Input
HDMI & UVC input compatibility
Supports 1080p, 1080i, and 720p input formats with multiple frame rates
๐ Advanced Network Bonding
Built-in 5G module for ultra-fast mobile streaming
Supports 2.4G / 5.8G dual-band Wi-Fi
Gigabit Ethernet for stable wired connections
USB support for external 4G dongle & USB network cards
๐ Multi-Protocol Streaming
Supports RTMP(s), SRT, and RTSP
Ideal for cloud platforms, CDN streaming, and private servers
๐พ Local Recording
Records in MP4 format (H.264/H.265 + AAC)
TF card support up to 256GB
FAT32 & exFAT file system support
๐ High-Quality Audio
AAC audio compression
44.1K / 48K sampling rate
3.5mm dual-channel audio input & monitoring output
๐ฑ Smart Control & Display
2-inch HD touch screen for real-time monitoring
Compatible with M Live App (Android 5+ & iOS 9+)
๐ Portable & Reliable
Built-in 7.4V / 7200mAh battery
Low power consumption (Max 18W)
Designed for mobile and outdoor broadcasting
๐ Rugged Broadcast Design
Linux operating system for stability
Operates from 0ยฐC to 40ยฐC
Lightweight yet durable construction (804g)
Mine Q8SE 5G HDMI Bonding Video Encoder
Q1. What is the Mine-Q8 SE 5G used for?
The Mine-Q8 SE 5G is a professional HDMI bonding encoder used for live streaming and recording of events.
Q2. What video resolution does it support?
It supports live streaming and recording up to 1080p60, with adjustable frame rates and multiple output resolutions.
Q3. Which video inputs are supported?
The device supports HDMI and UVC inputs, making it compatible with cameras, video switchers, and USB video sources.
Q4. Which streaming protocols are supported?
It supports RTMP / RTMPS, SRT, and RTSP, ensuring compatibility with most streaming platforms and private servers.
Q5. Does it support 5G and network bonding?
Yes. The Mine-Q8 SE features a built-in 5G module and supports dual-band Wi-Fi, Gigabit Ethernet, USB network cards, and external 4G dongles for stable multi-network streaming.
Q6. Can I record videos locally?
Yes. The device supports local recording to a TF card up to 256GB in MP4 format (H.264/H.265 + AAC).
Q7. What audio inputs and outputs are available?
It offers a 3.5mm dual-channel audio input and 3.5mm audio monitoring output, supporting AAC audio encoding.
Q8. Is a display included on the device?
Yes. It has a built-in 2-inch HD touch screen for real-time monitoring and easy configuration.
Q9. Can the encoder be controlled remotely?
Yes. It supports control via the M Live App, compatible with Android 5.0+ and iOS 9+ devices.
Q10. Does it have a built-in battery?
Yes. It includes a 7.4V / 7200mAh rechargeable battery, making it ideal for mobile and outdoor live streaming.
Q11. What operating system does the device use?
The Mine-Q8 SE 5G runs on a Linux-based system for stable and reliable performance.
Q12. Is it suitable for outdoor use?
Yes. It is designed for professional field use and operates in temperatures from 0ยฐC to 40ยฐC with humidity below 95% (non-condensing).
