Allows fine control of camera movement (pan, tilt, zoom), plus adjustment of parameters like white balance, exposure, focus etc.

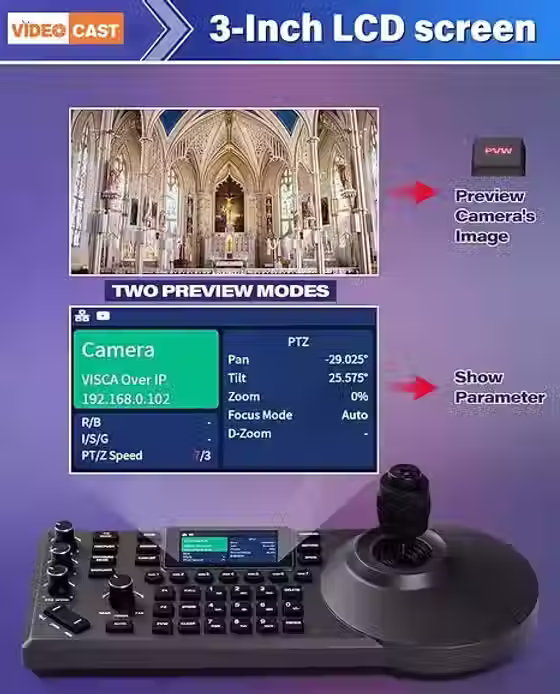

For monitoring live feed / preview directly on the controller.

Supports 4K @30fps via HDMI output for high resolution external display.

Real-time preview over network using NDI (HX2) or RTSP.

Shortcut buttons for up to 7 PTZ cameras; can save up to ~1000 camera configurations.

Supports VISCA, VISCA over IP / TCP, Pelco-D / Pelco-P, ONVIF, and NDI. Automatic protocol recognition in many cases.

• RJ-45 network interface (supports PoE 802.3af)

• Serial ports: RS-232, RS-422, RS-485

• HDMI out for video preview / external display

• Supports up to 8 tally channels.

• ​Customizable buttons (e.g. F1, F2) and button lock to avoid accidental changes.

Up to 255 preset positions; large camera-info storage (≈1000 cameras) for recalling different setups.

• Supports PoE (Power over Ethernet) to reduce cabling.

• Requires 12V input otherwise.

• Power consumption ~3W.

• Operating temperature: -10°C to +40°C; storage: -20°C to +60°C.
