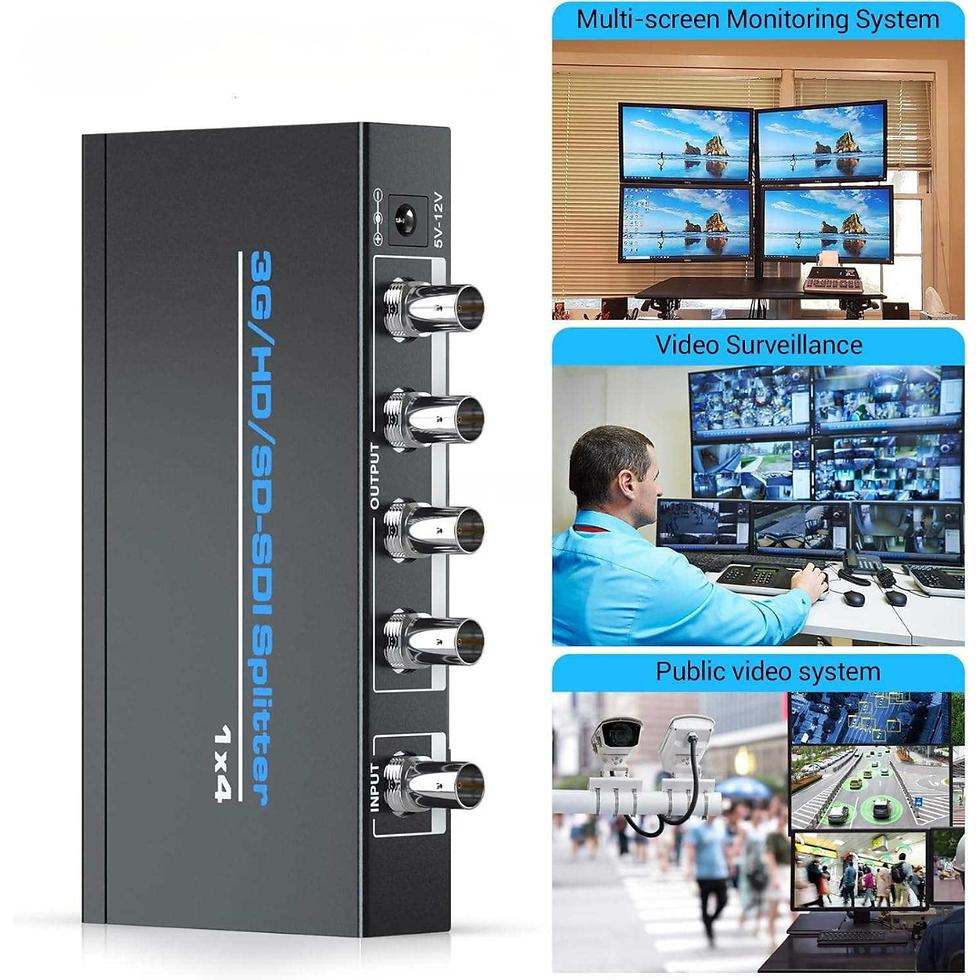

VIDEOCAST 3G-SDI 1X4 Splitter Media Streaming Device

Inputs & Outputs

• 1× SDI Input – Receives the SD/HD/3G-SDI video signal.

• 4× SDI Outputs – Distributes the signal to up to 4 displays or recording/streaming devices simultaneously.

 Supported Formats & Resolutions

• Supports SDI video standards:

  • SD-SDI (270 Mbps)

  • HD-SDI (1.485 Gbps)

  • 3G-SDI (2.97 Gbps)

• Resolutions supported include:

  • Standard Definition: 480i / 576i

  • HD: 720p up to 60 Hz, 1080i up to 60 Hz

  • 3G-SDI Full HD: 1080p up to 60 Hz

 Signal Quality & Performance

• Re-clocking & Equalization – Improves signal integrity for longer cable runs and stable distribution.

• Transmission Distances

  • ~100 m for 3G-SDI

  • ~200 m for HD-SDI

  • ~300 m for SD-SDI (using proper coaxial cable)

 Power & Indicators

• DC 5 V input (adapter included)

• LED indicators for power and signal presence.

• 1. What does this device do?




• Splits one SDI video input into four identical SDI outputs.




• 2. What video formats does it support?




• SD-SDI, HD-SDI and 3G-SDI (up to 1080p @60 Hz).




• 3. Can the outputs show different content?




• No — all outputs mirror the same signal.




• 4. Does it convert to HDMI/USB?




• No — this is only an SDI splitter; converters are separate.




• 5. Do I need power?




• Yes — it uses external DC power to boost and re-clock the signal.




• 6. Will audio pass through?




• Yes — embedded SDI audio is carried to all outputs.




• 7. Is it suitable for live streaming/broadcast?




• Yes — ideal for distributing SDI camera feeds to multiple monitors or encoders.
